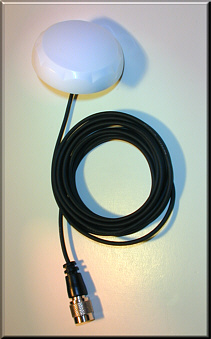

ALL-WEATHER, UNOBTRUSIVE FLUSH-MOUNT GPS ANTENNA |
|||||||||||
 |
|||||||||||
|
60014-002 |
|||||||||||
|
This model is ideal for applications where a low-profile is required in a surface-mount application. It delivers very good performance in a discreet, easy to install form factor. This antenna features a 5-meter cable assembly, permanently attached and terminated with a TNC connector. A weatherproofing surface gasket and mounting hardware are also included. |
|||||||||||
|
Antenna Specifications |
|||||||||||
|
Operating frequency: 1575.42 MHz, ±1.023 MHz (typ) • Antenna element gain: +5.0 dBi (typ), -1 dBi at 10º Filtering: -20 dB (typ) @Fo ±50 MHz • Overall Gain: 27 dB (typ) • NF: 2.0 dB (max) • VSWR: 2.0 (max) • Power: 5.0 VDC • Current: 28 mA (typ) • Diameter: 60mm • Height: 38 mm • Weight: 65 g (excludes connector and cable) • Operating temp: -30ºC to +85ºC |
|||||||||||
|
